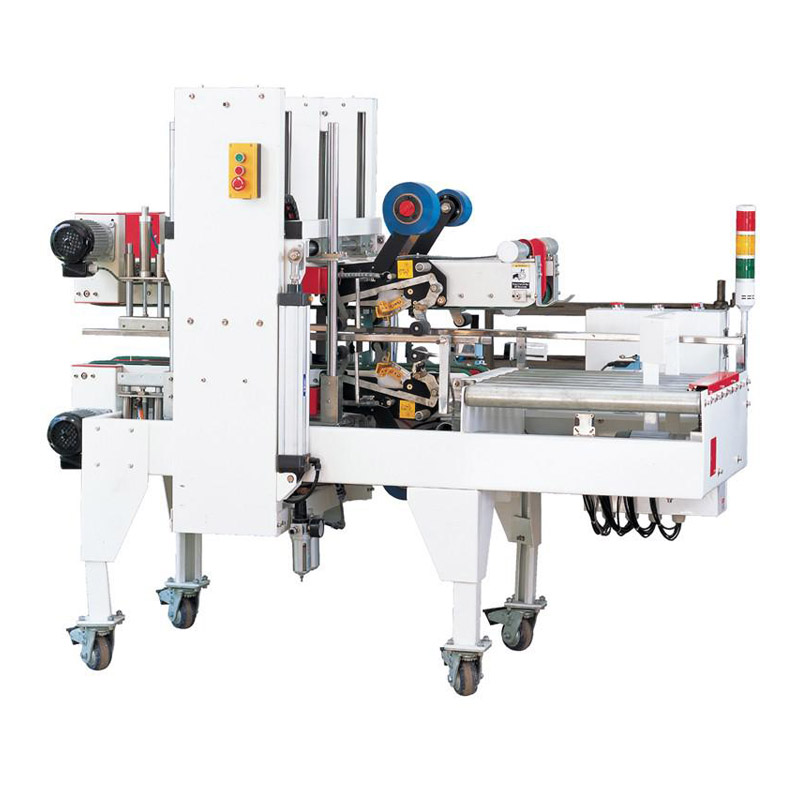

JCP-556AC

Automatic Carton Edge Sealing Machine

Applies adhesive tape to carton edges on production lines, sealing both the upper and lower edges to ensure strong and durable packaging while enabling fast operation, reducing labor, improving safety, and making transportation more convenient.

Feature

Features:

Carton Size: (L) 320–500 × (W) 200–500 × (H) 180–500 mm
Table Height: 500–750 mm
Operating Speed: 400 cartons/hour
Tape Width: 48 mm, 60 mm, 75 mm (optional)
Power Supply: 220V, 50 Hz, Single Phase
Air Pressure: 6 kg/cm²
Machine Dimensions: 2100 × 1200 × 1580 mm
Machine Weight: 450 kg

Specification

NO	JCP-556AC
Carton size	L 320-500 x W 200-500 x H 180-500mm
Carton weight	1-40kg
Sealing speed	18M/min
Table height	600-750mm
Power supply	110V/220V 50HZ/60HZ 1 Phase
Motor power	180W x 2pcs
Tape width	2” or 3”
Air	0.6mpa
Net weight	500kg
