JCP02-30AM10

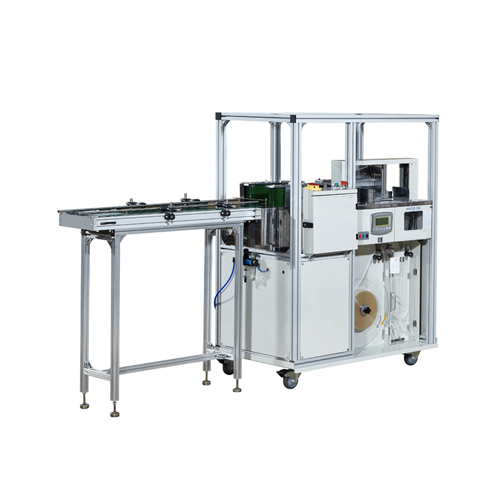

Pharmaceutical Box Banding Machine

Designed to reduce costs and labor for various industries such as pharmaceutical manufacturing, printing, graphics, and other product sectors. This multipurpose strapping machine uses heat sealing technology to securely bond straps, ensuring tight and secure packaging around products.

Feature

Features

Automatic grouping and packaging of boxes/products
Pneumatic pusher arm
Schneider PLC control system
Adjustable conveyor speed and pusher size
Stable and efficient operation
Compatible with paper tape and OPP film tape

Specification

Model	JCP02-30AM10
Tape specification	29.2 – 29.6mm W x 100 – 130mic (Thickness)
Tape type	Opp film or Paper tape
Banding size	100-150mm L x 50 – 120mm W x 15 – 30mm H
Roll size	40mm Diameter X 500M L
Table height	950mm
Power supply	220V/110V 50Hz/60Hz 1 Phase
Control system	PLC
Banding speed	12Packs/min
Net weight	170kg
Welding method	Heat sealing
Air pressure required	0.6–0.8 kg/cm²
Banding tension	5-40N
