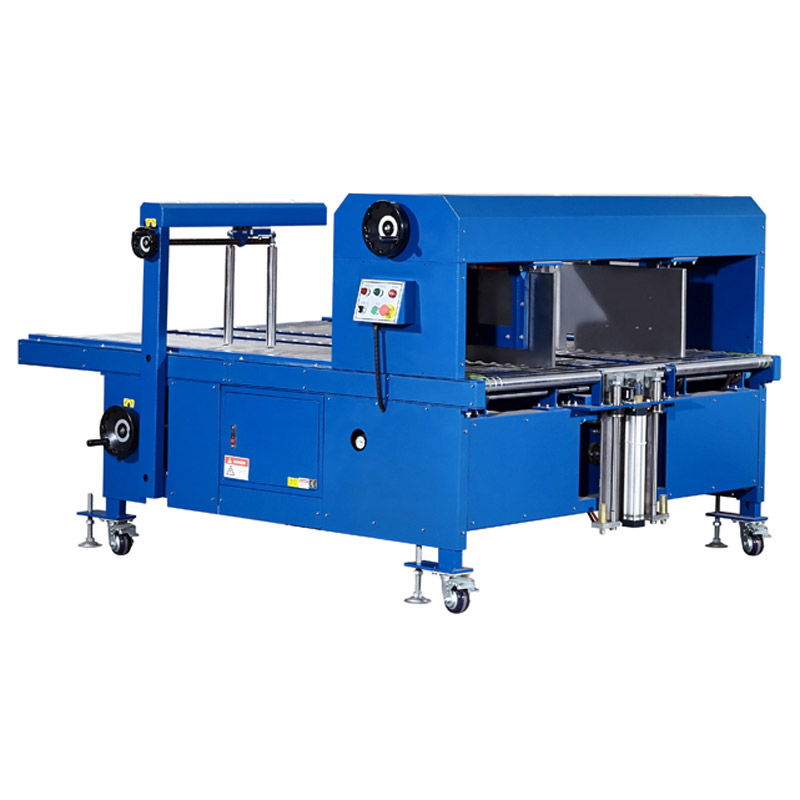

JCP-AF01

Automatic Box Strapping Machine

High-quality machine constructed from extra-thick steel for superior strength and durability. Its compact design makes it suitable for both small-scale operations and large industrial applications. The machine operates faster than conventional strapping machines and provides stronger, more consistent tension for a secure and precise strap fit. Equipped with a tension adjustment control panel on the front for convenient and easy operation.

Feature

Features:

High-Speed Automatic Carton Strapping Machine
Capable of operating at up to 30 straps per minute
Supports both manual and automatic operation modes
Equipped with an automatic strap feeding function
Features a robust and durable structural design
Engineered for continuous 24-hour operation
Strap tension adjustment easily controlled via the control panel
Compatible with 5 mm strapping, helping to reduce operating costs
Specifically designed for the corrugated packaging industry

Specification

NO	JCP-AF01
Material type	PP Strapping band
Strap size	5mm-6mm W * 0.35-0.65mm thickness
Roll size	200mm core * 420 mm external core * 190mm W
Power	1500W
Arch size	W1250*H500mm
Power supply	220V/110V 50HZ/60HZ
Control system	PLC
Strapping speed	17 bundles/m
Strapping Tension	5-30kg
Net weight	450kg
